Buffer Tank
Liscarroll Engineering used industry leading technicians in Robotic Milking to implement mechanical and functional improvements over existing products available to create this NEW and IMPROVED Buffer Tank.
Standard Features

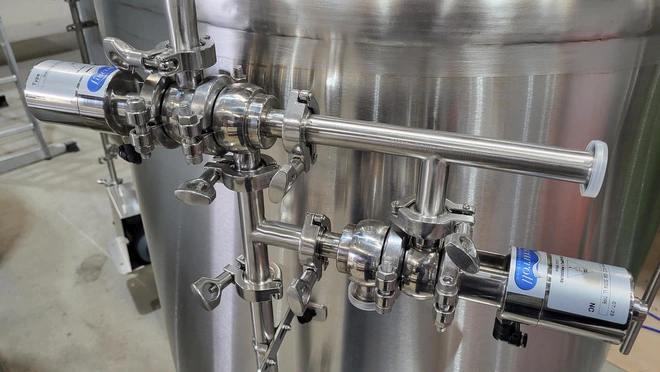

Diverter valve manifold pipe on the Buffer Tank is supplied for qty 3 delivery lines on all tanks as standard
Reliable industry leading milk pump

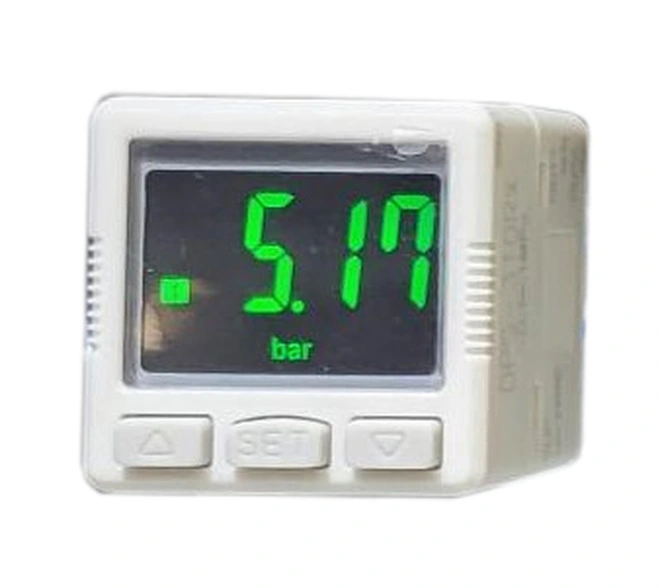

Compressed air regulator and Pressure Sensor included as standard to eliminate milk being dumped accidentally
3 supply line programme installed as standard with all tanks in the PLC
Pneumatic valve manifold block (in control panel) supplied as standard for up to 3 delivery lines
3 dosing pumps included as standard
Highlighted Features
Easy to install
Future proof allowing for further expansion

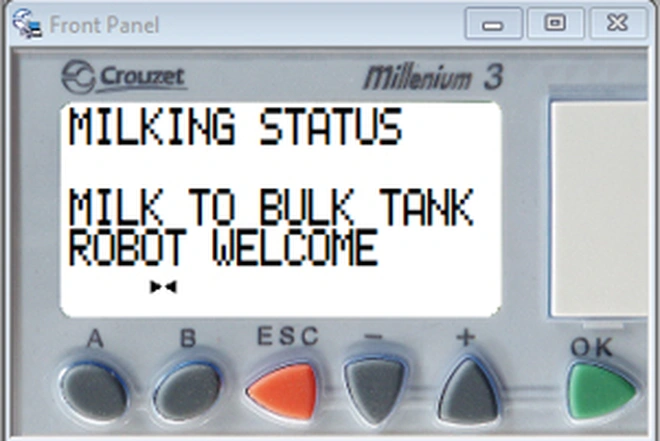

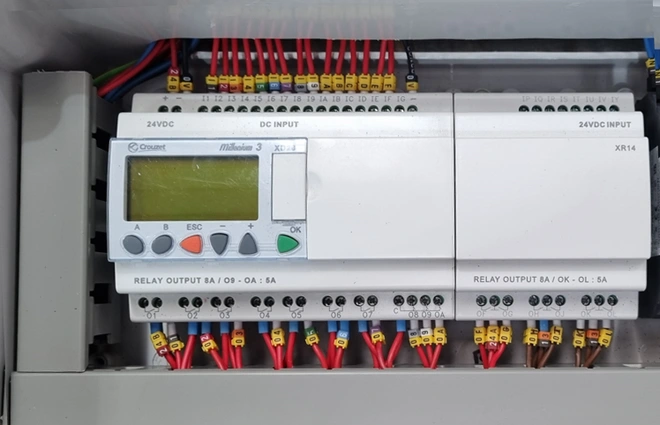

PLC displaying the current status and fault
Smart Layout for easy accessibility, maintenance, and troubleshooting
Specification

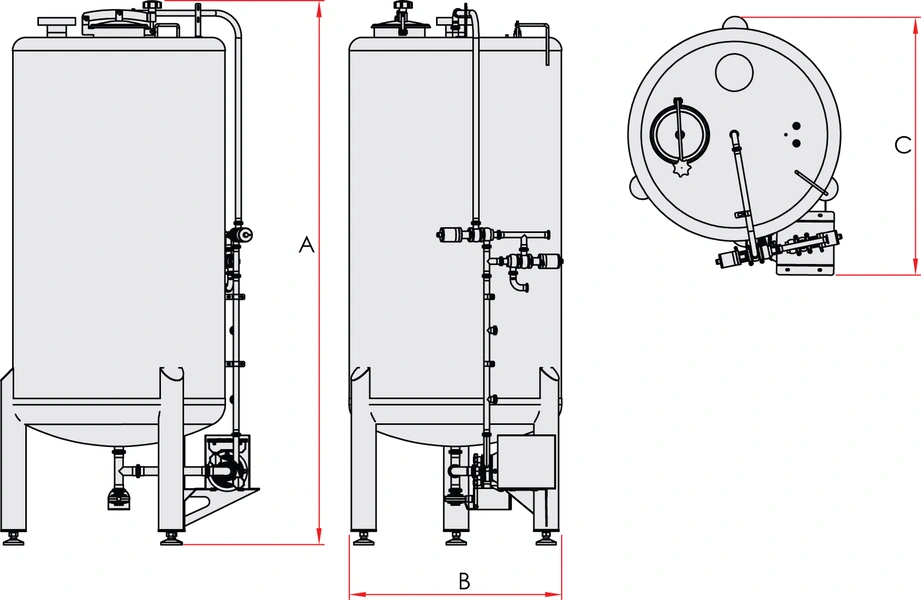

Buffer Tank Drawing

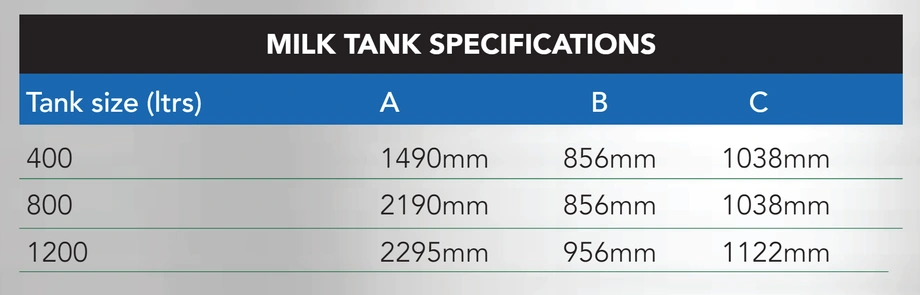

Tank Specifications

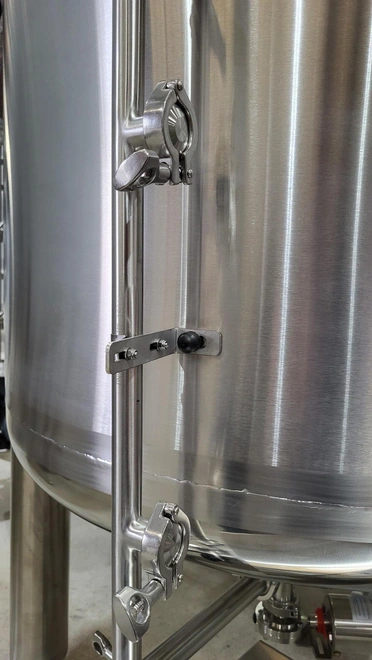

Improved and Adjustable liquid level
controllers to accommodate different
water characteristics with an updated
probe design to reduce the likelihood
of probes shorting out.Pump overload monitoring to raise
alarm if the milk pump is in fault and
the fault is displayed.
Alarms can easily be linked into
existing Autodialer if required.Alarms displayed on PLC screen and
status sent to Robot.
Details
All components used to regulate the cooling and washing functions are commercially available “off -the-shelf” parts if required readily available at affordable prices. Only reputable and well-known brands are used.

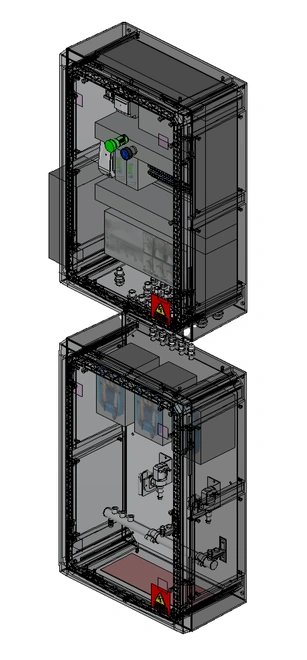

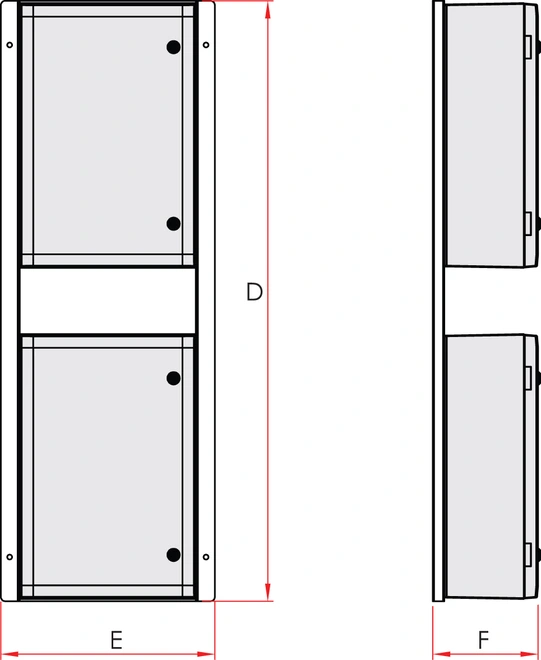

- Separate electronic and wet compartments on one wall mounting stainless steel backing plate
- Electrics and pneumatics in top panel.
- Dosing pumps, water solenoids and CIP manifold in bottom panel
- All devices contained within panel enclosures
You can download the brochure here
Certification
Here at Liscarroll Engineering, we are certified in Quality Management Systems in our designs and manufacturing of milk tanks and silos for the Irish and UK markets. You can see our certificate of registration here
